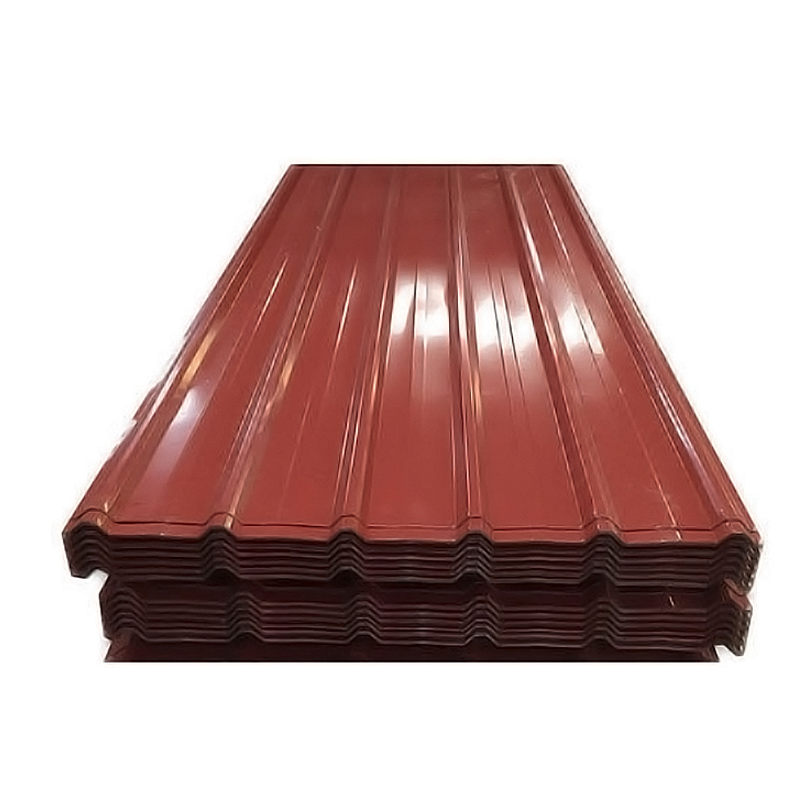

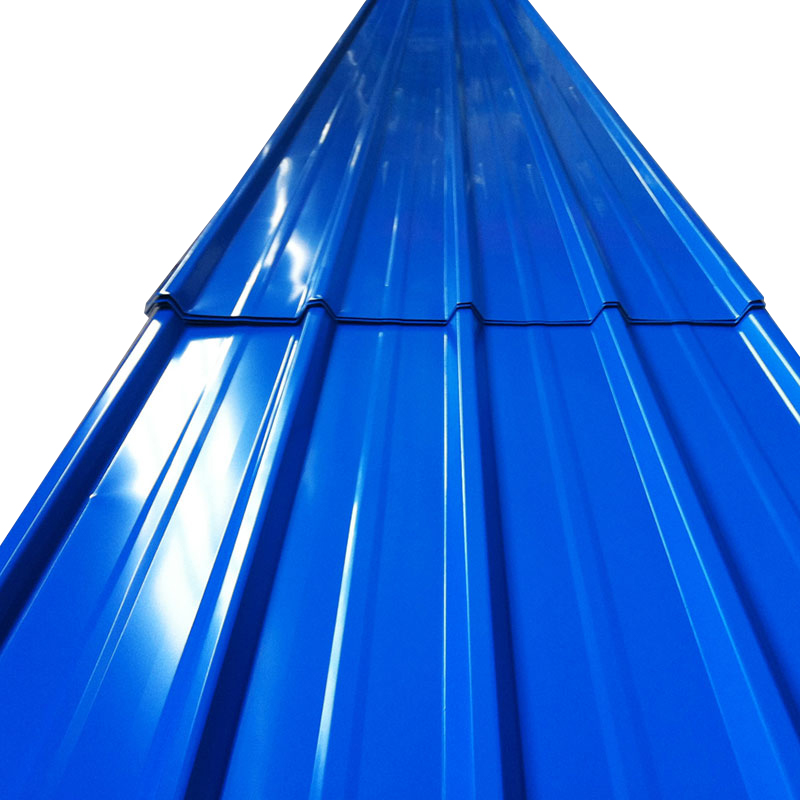

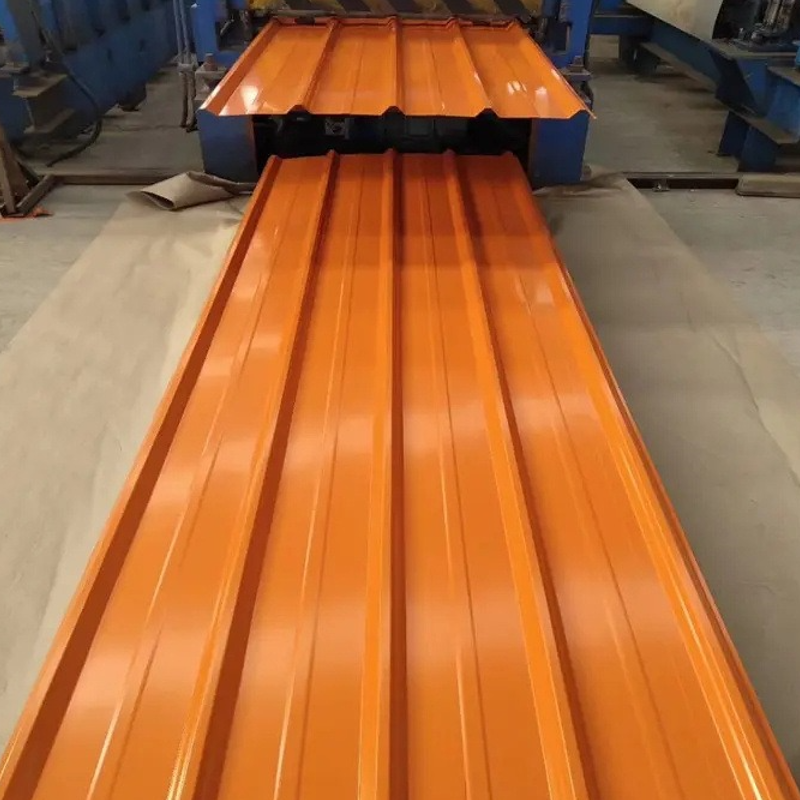

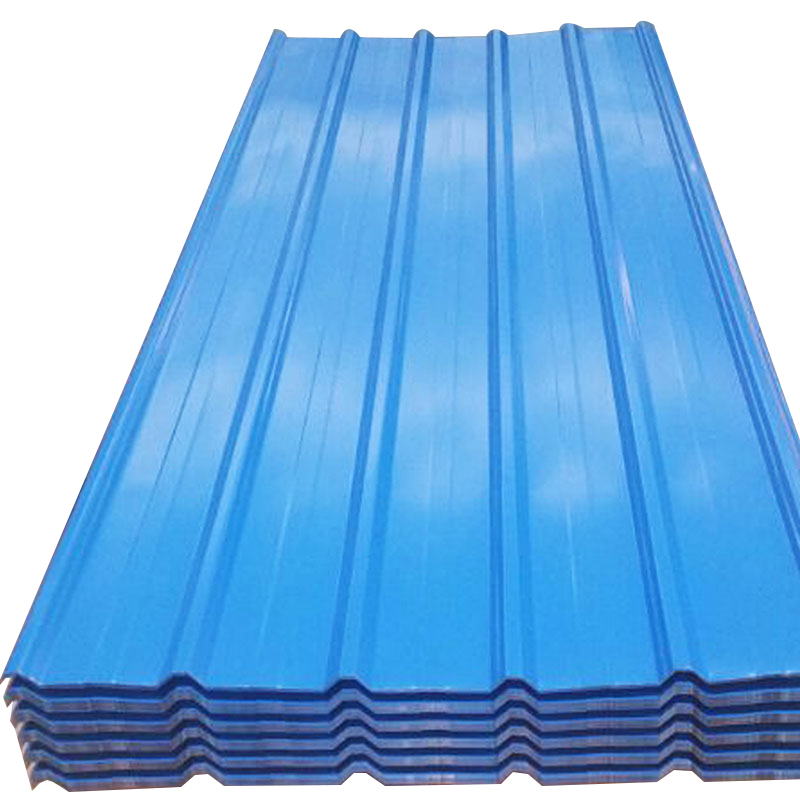

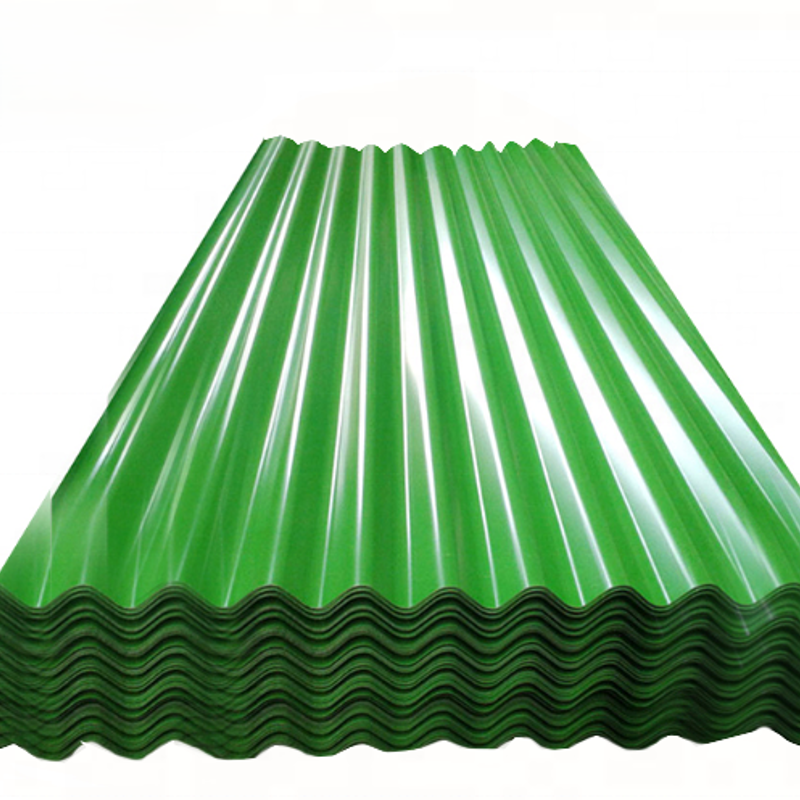

PPGI Corrugated Sheet
Pre-painted Galvanized Steel plate
- Standard: JIS/EN/ASTM Standard
- Grade: SGCC/DX51D/S250GD/DX52D/DX53D/S280GD/S320GD/S350GD
- Coating: Z40-Z275 or G40/G60/G90
- Coating Thickness
Primer: PU or Epoxy 5um
Top Coat: 15-20 um
Back Primer: PU or Epoxy
Back Coat: PE or Epoxy 5-12um
- Spangle: Regular spangle / Minimized spangle / Zero spangle
- Size:
Thickness: 0.15mm-1.2mm
Width: 900mm-1250mm
Description
Product Introduction

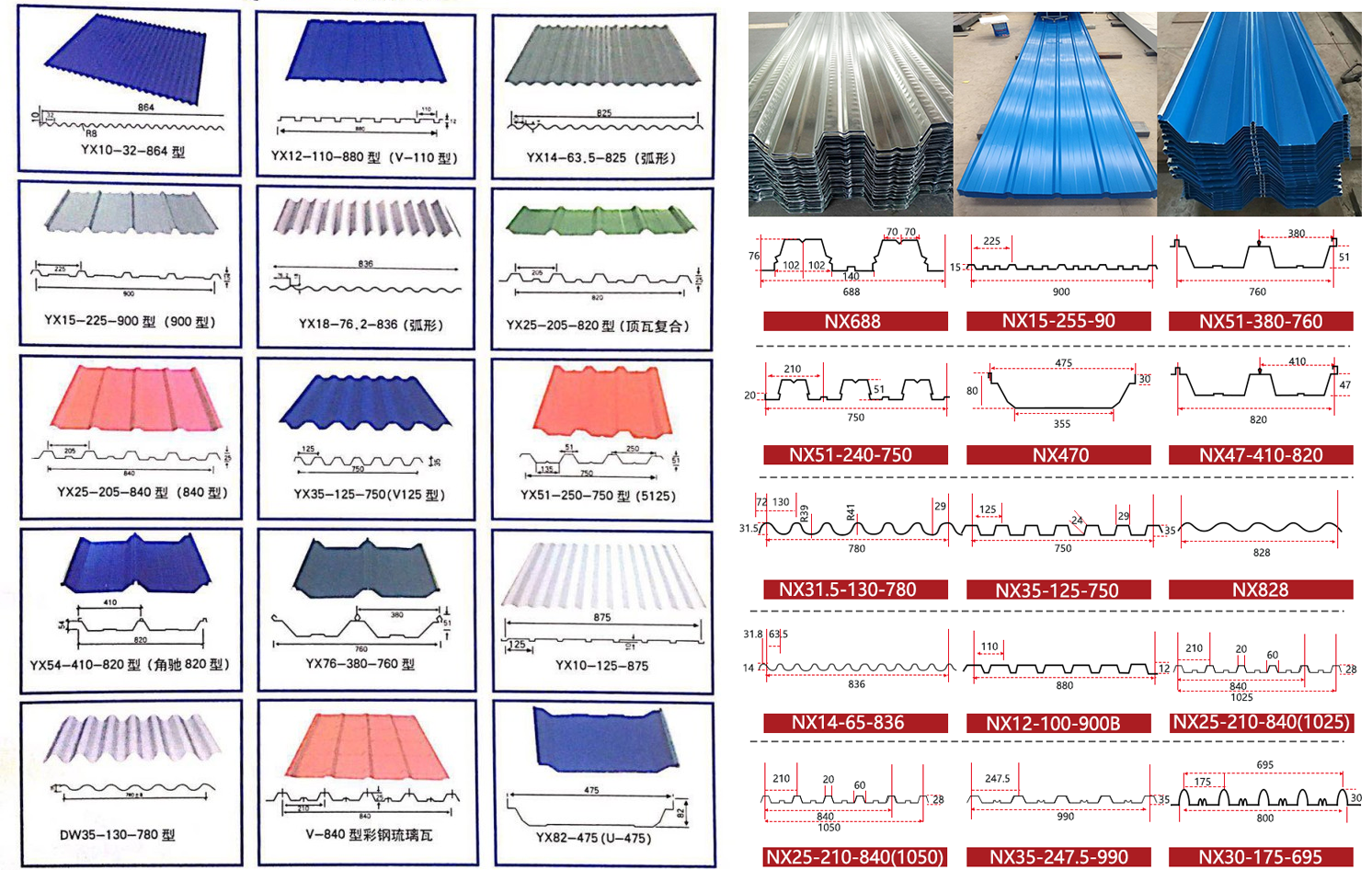

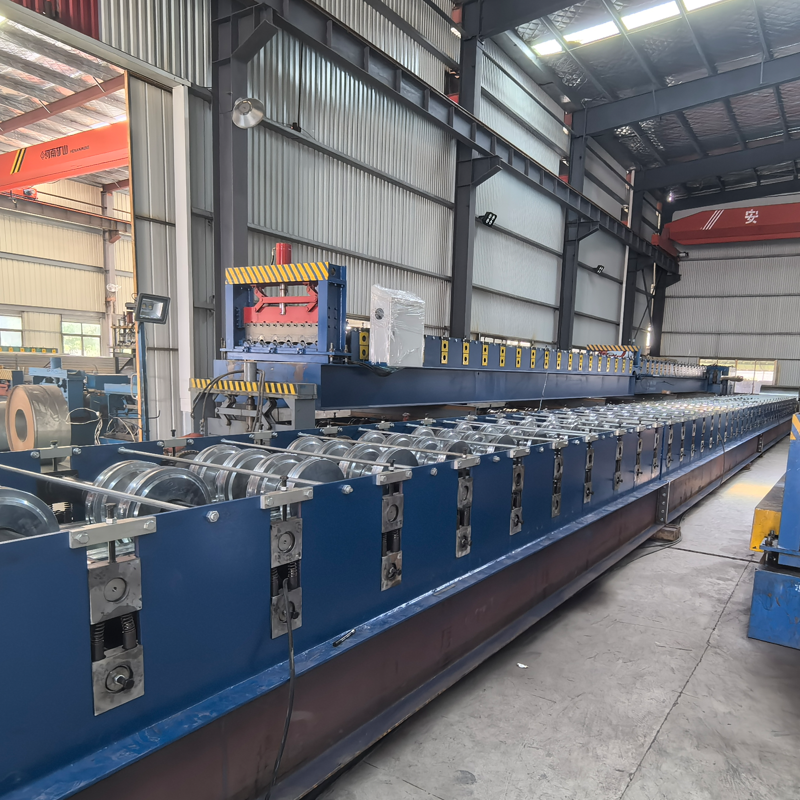

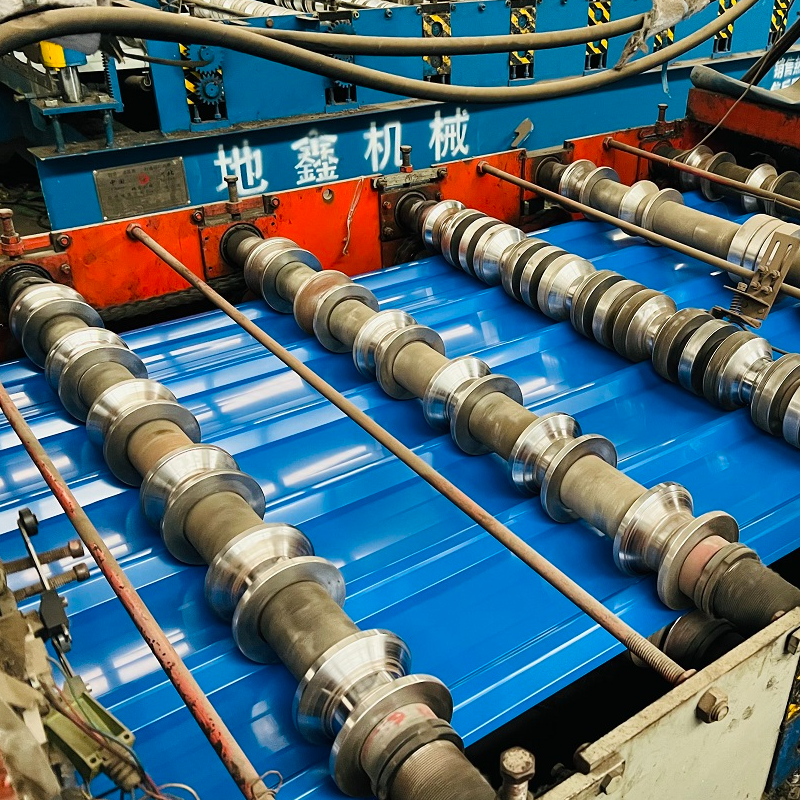

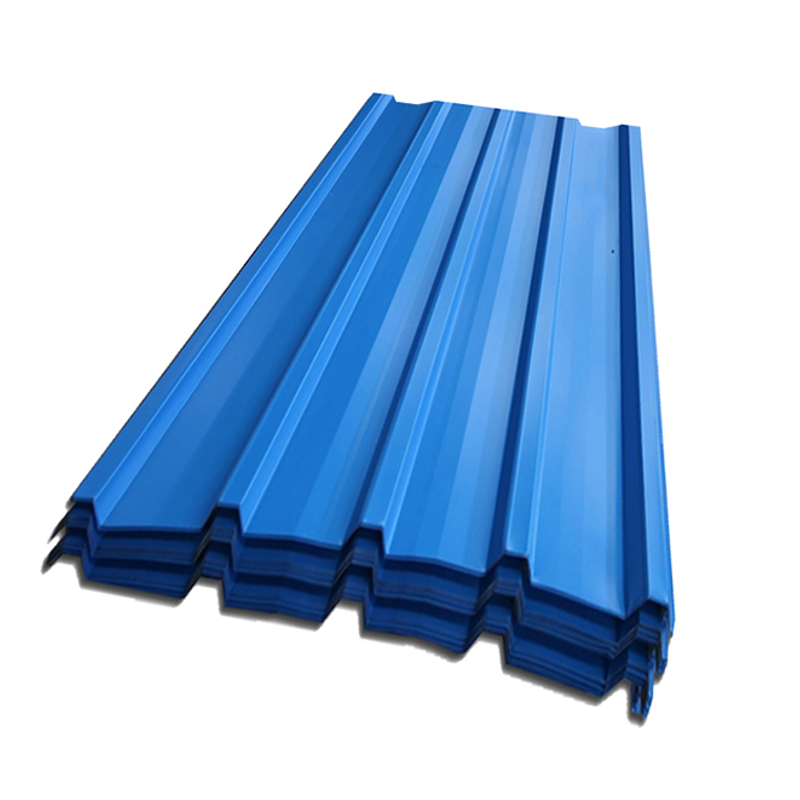

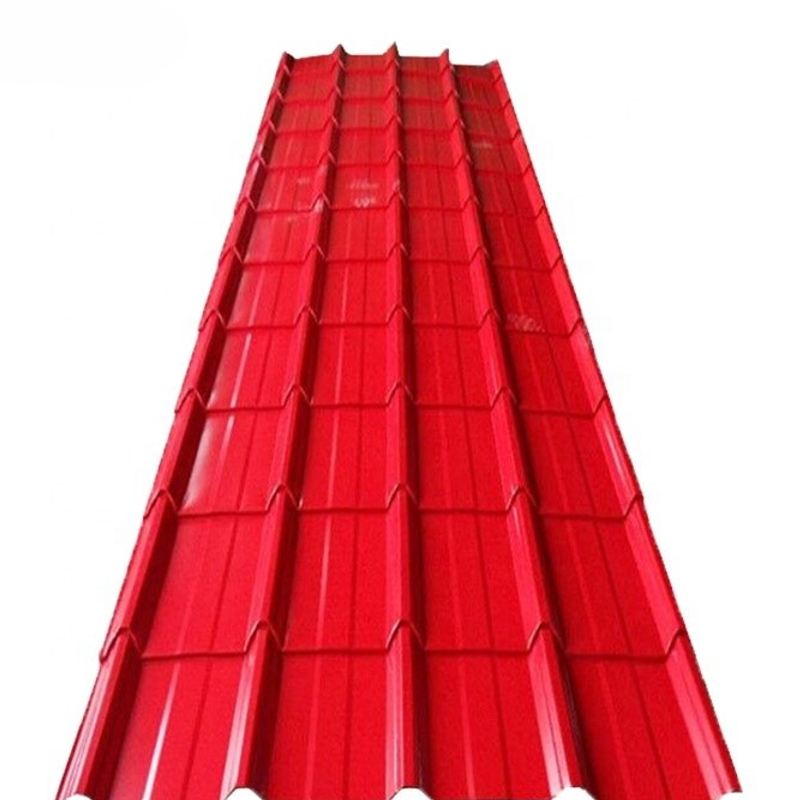

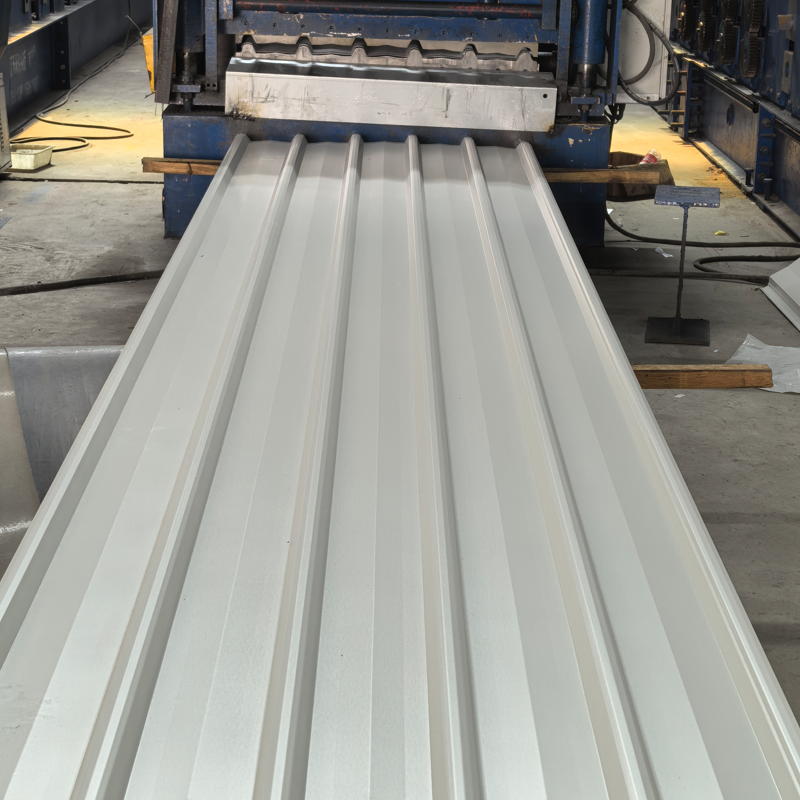

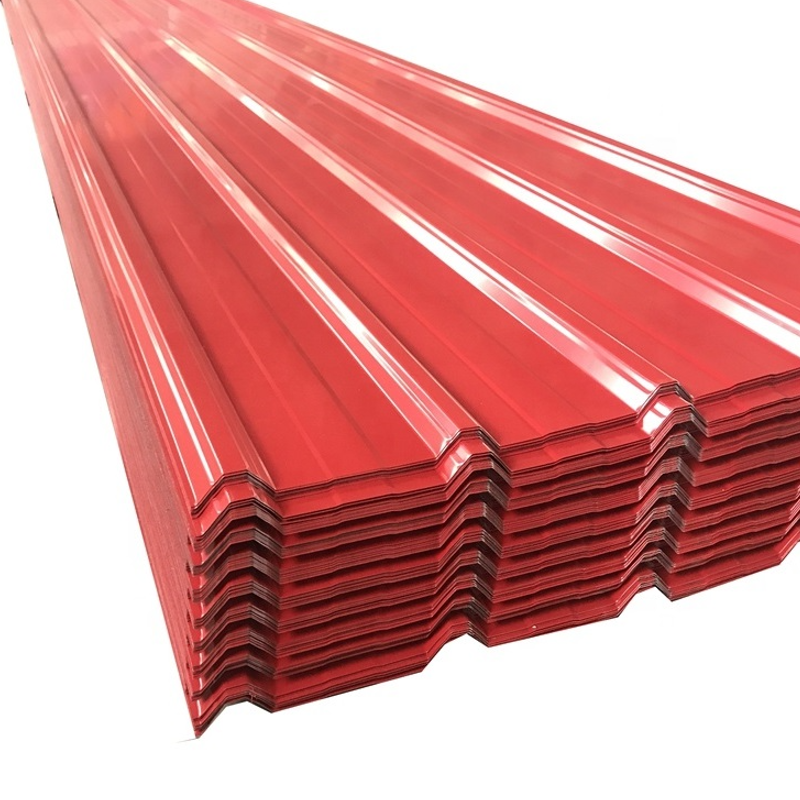

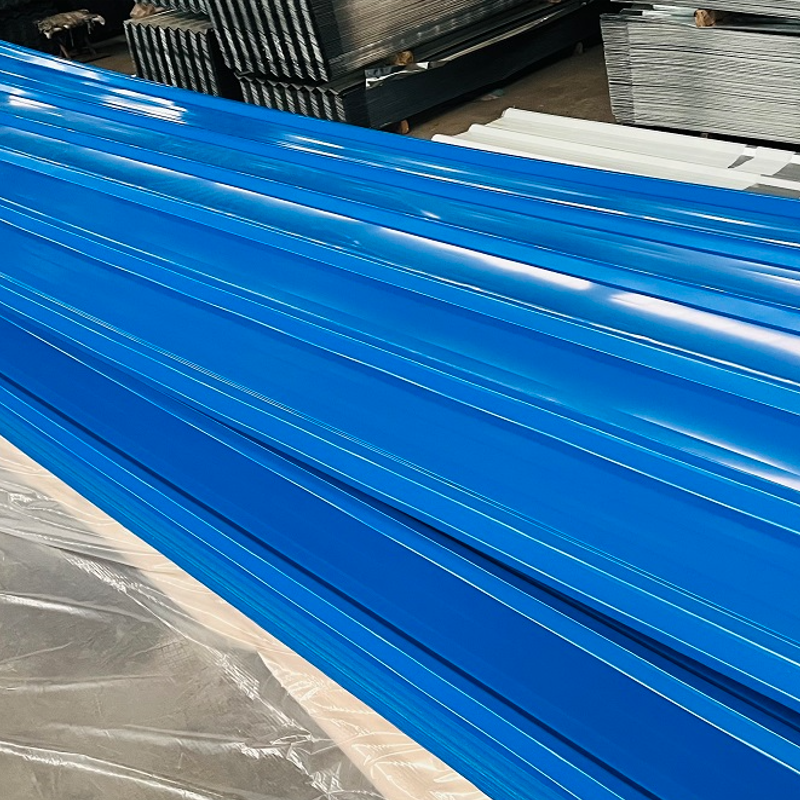

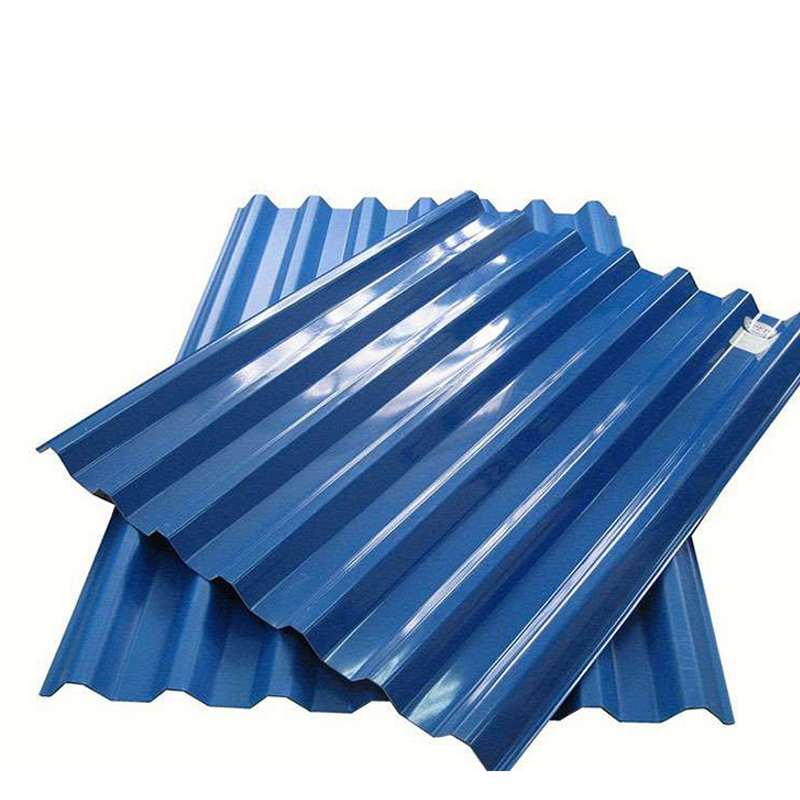

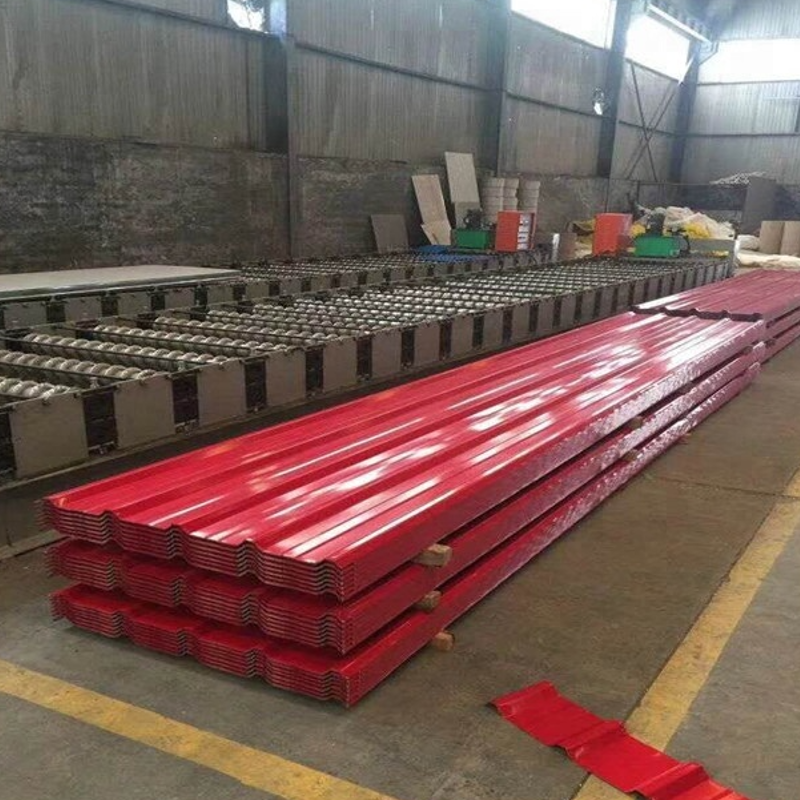

Color coated corrugated board, also known as pressure plate, the use of color coated steel plate, galvanized plate and other metal plate by rolling cold bending into a variety of wave shape of the pressure plate, it is suitable for industrial and civil buildings, warehouses, special buildings, long-span steel structure of the roof, wall and interior and exterior wall decoration.
Product Features
1.Light weight and high strength: color steel corrugated board is light in weight, but high in strength, easy to transport and construction, and can reduce the weight of the building.
2. Corrosion resistance: the color coating on the surface can effectively resist corrosion and extend the service life.
3. Easy construction: color steel corrugated board installation is simple and quick, can greatly shorten the construction period.
4. Beautiful and durable: diverse colors, beautiful shape, and high durability, can enhance the overall appearance of the building.
Application Fields
Color steel corrugated panels are widely used in the construction field, such as roofing, wall, partition and so on. At the same time, it is also suitable for machinery manufacturing, furniture manufacturing, transport parts production and fire equipment and other fields.
Product Parameters
| Pre-painted Galvanized Steel plate | Pre-painted 55% AL-Zn coated steel plate (ColorLume) | |
| Standard | JIS/EN/ASTM Standard | ASTM A755/JIS G3322/EN10169 |
| Grade | SGCC/ DX51D/ S250GD/ DX52D/ DX53D/ S280GD/ S320GD/ S350GD | CS-B/ GR33/ GR37/ GR40/ CGCC/ CGLCC/ DX510/ S220GD/ S250GD/ S280GD |
| Coating | Z40-Z275 or G40/G60/G90 | AZ40--AZ150 |
| Coating Thickness | Primer: PU or Epoxy 5um Top Coat: 15-20 um Back Primer: PU or Epoxy Back Coat: PE or Epoxy 5-12um |
Primer: PU or Epoxy 5um Top Coat: 15-20 um Back Primer: PU or Epoxy Back Coat: PE or Epoxy 5-12um |
| Spangle | Regular spangle / Minimized spangle / Zero spangle | Regular spangle / Minimized spangle |
| Size | Thickness: 0.15mm-1.2mm Width: 900mm-1250mm | Thickness: 0.15mm-1.2mm Width: 900mm-1250mm |
